| Manufacturer: | Danfoss |
| Series: | VLT HVAC BasicDrive FC 101 |
| Model: | FC-101P11KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX |
| Product Code: | 131N0192 |
| Application: | pumps |
| Capacity, kW: | 11 |
| Current, A: | 23 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 0-400 |
| Enclosure: | IP54 |
| Acceleration time, sec: | 1-3600 |
| Deceleration time, sec: | 1-3600 |
| EMC filter: | RFI Class A1/B (reduced cable length) (C1) |
| Analog input: | 2 |
| Digital input: | 4 |
| Analog output: | 2 |
| RS485 (Modbus RTU): | BACnet, Modbus RTU, N2 Metasys, FLN Apogee, FC Protocol |
| PID: | PI – controller |
| V/f control mode: | + |
| Operation temperature, °C: | -20…..+50 |
| Storage temperature, °C: | -30…..+70 |
| Dimensions (W x H x D), mm: | 242x480x260 |
| Weight, kg: | 23 |

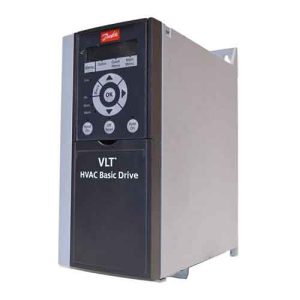

Biến tần Danfoss FC-101P11KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX
Danh mục sản phẩm
-
Biến tần Danfoss FC-101P11KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX
- Lượt xem: 752
- Biến tần Danfoss FC-101P11KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX
