| Product characteristics | ||||
|---|---|---|---|---|
| Output signal | analogue signal | |||
| Measuring range |
|
|||
| Process connection | threaded connection G 1/4 internal thread | |||
| Application | ||||
| Special feature | Gold-plated contacts | |||
| Application | for industrial applications | |||
| Media | liquids and gases | |||
| Medium temperature [°C] | -25…90; (on request: -40…90 °C) | |||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Type of pressure | relative pressure | |||
| Electrical data | ||||
| Operating voltage [V] | 9.6…32 DC | |||
| Min. insulation resistance [MΩ] | 100; (500 V DC) | |||
| Protection class | III | |||
| Reverse polarity protection | yes | |||
| Inputs / outputs | ||||
| Number of inputs and outputs | Number of analogue outputs: 1 | |||
| Outputs | ||||
| Total number of outputs | 1 | |||
| Output signal | analogue signal | |||
| Number of analogue outputs | 1 | |||
| Analogue current output [mA] | 4…20 | |||
| Max. load [Ω] | 720; (Ub = 24 V; (Ub – 9,6 V) / 20 mA) | |||
| Overload protection | yes | |||
| Measuring/setting range | ||||
| Measuring range |
|
|||
| Accuracy / deviations | ||||
| Repeatability [% of the span] | < 0,1; (with temperature fluctuations < 10 K) | |||
| Characteristics deviation [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) | |||
| Long-term stability [% of the span] | < ± 0,05; (per 6 months) | |||
| Temperature coefficient zero point [% of the span / 10 K] | 0,1; (0…80 °C) | |||
| Temperature coefficient span [% of the span / 10 K] | 0,2; (0…80 °C) | |||
| Response times | ||||
| Step response time analogue output [ms] | 3 | |||
| Operating conditions | ||||
| Ambient temperature [°C] | -25…80 | |||
| Storage temperature [°C] | -40…100 | |||
| Protection | IP 65 | |||
| Mechanical data | ||||
| Weight [g] | 222.5 | |||
| Materials | stainless steel (1.4404 / 316L); FKM; PA; EPDM/X | |||
| Materials (wetted parts) | stainless steel (1.4305 / 303); ceramics; FKM | |||
| Min. pressure cycles | 100 million | |||
| Process connection | threaded connection G 1/4 internal thread | |||
| Restrictor element integrated | no (can be retrofitted) | |||
| Remarks | ||||
| Pack quantity | 1 pcs. | |||
| Electrical connection | ||||
| Connection | Connector: 1 x M12; Contacts: gold-plated | |||

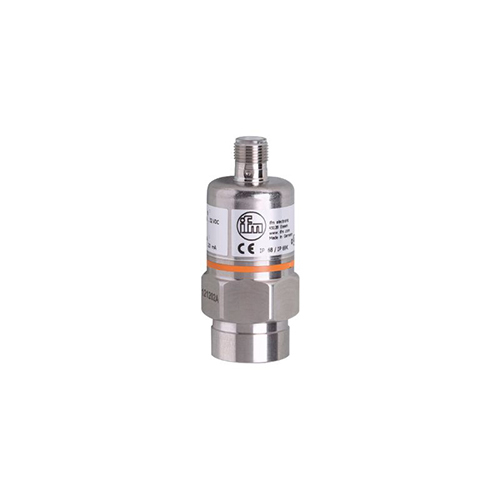

Cảm biến áp suất IFM PA3023 0…25 bar
Danh mục sản phẩm
-
Cảm biến áp suất IFM PA3023 0…25 bar
- Lượt xem: 667
- Cảm biến áp suất IFM PA3023 0…25 bar
