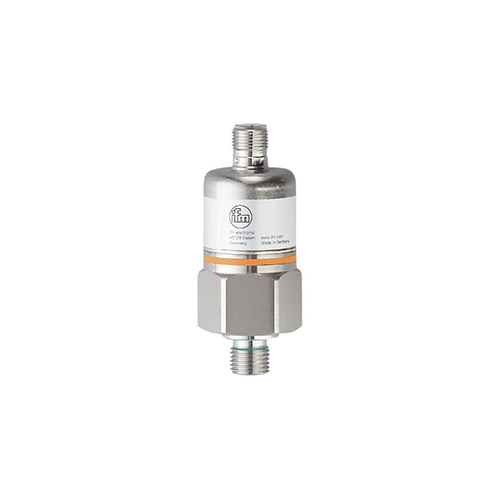

| Product characteristics |
| Output signal |
analogue signal |
| Measuring range |
| 0…0.1 bar |
0…100 mbar |
0…40.16 inH2O |
0…10 kPa |
|
| Process connection |
threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5 |
| Application |
| Special feature |
Gold-plated contacts |
| Application |
for industrial applications |
| Media |
liquids and gases |
| Medium temperature [°C] |
-25…90; (on request: -40…90 °C) |
| Min. bursting pressure |
| 30000 mbar |
12030 inH2O |
3000 kPa |
|
| Pressure rating |
| 4000 mbar |
1606 inH2O |
400 kPa |
|
| Type of pressure |
relative pressure |
| Electrical data |
| Operating voltage [V] |
9.6…32 DC |
| Min. insulation resistance [MΩ] |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Inputs / outputs |
| Number of inputs and outputs |
Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs |
1 |
| Output signal |
analogue signal |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4…20 |
| Max. load [Ω] |
720; (Ub = 24 V; (Ub – 9,6 V) / 20 mA) |
| Overload protection |
yes |
| Measuring/setting range |
| Measuring range |
| 0…0.1 bar |
0…100 mbar |
0…40.16 inH2O |
0…10 kPa |
|
| Accuracy / deviations |
| Repeatability [% of the span] |
< 0,2; (with temperature fluctuations < 10 K) |
| Characteristics deviation [% of the span] |
< ± 0,5 (BFSL) / < ± 1 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Long-term stability [% of the span] |
< ± 0,1; (per 6 months) |
| Temperature coefficient zero point [% of the span / 10 K] |
< ± 0,5; (0…80 °C) |
| Temperature coefficient span [% of the span / 10 K] |
< ± 0,5; (0…80 °C) |
| Response times |
| Step response time analogue output [ms] |
3 |
| Operating conditions |
| Ambient temperature [°C] |
-25…80 |
| Storage temperature [°C] |
-40…100 |
| Protection |
IP 68; (7 days / 1 m water depth / 0.1 bar) |
| Mechanical data |
| Weight [g] |
215.5 |
| Materials |
stainless steel (1.4404 / 316L); FKM; PA; EPDM/X |
| Materials (wetted parts) |
stainless steel (1.4305 / 303); ceramics; Sealing: FKM |
| Min. pressure cycles |
100 million |
| Tightening torque [Nm] |
25…35; (recommended tightening torque; depends on lubrication, seal and pressure rating) |
| Process connection |
threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5 |
| Restrictor element integrated |
no (can be retrofitted) |
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12; Contacts: gold-plated |
