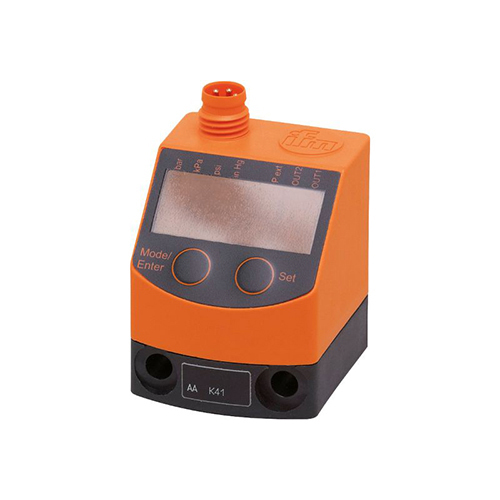

| Product characteristics |
| Output signal |
switching signal |
| Measuring range |
| -1…10 bar |
-15…145 psi |
-30…296 inHg |
-100…1000 kPa |
|
| Process connection |
threaded connection G 1/8 internal thread |
| Application |
| Special feature |
Gold-plated contacts |
| Application |
for industrial applications |
| Media |
compressed air |
| Conditionally suitable for |
other media on request |
| Medium temperature [°C] |
0…60 |
| Min. bursting pressure |
| 30 bar |
435 psi |
886 inHg |
3000 kPa |
|
| Pressure rating |
| 20 bar |
290 psi |
591 inHg |
2000 kPa |
|
| Vacuum resistance [mbar] |
-1000 |
| Type of pressure |
relative pressure; vacuum |
| Electrical data |
| Operating voltage [V] |
18…32 DC; (according to EN 50178 SELV/PELV) |
| Current consumption [mA] |
< 50 |
| Min. insulation resistance [MΩ] |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Overvoltage protection |
yes; (< 40 V) |
| Power-on delay time [s] |
0.3 |
| Integrated watchdog |
yes |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
switching signal |
| Electrical design |
PNP |
| Number of digital outputs |
2 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2 |
| Permanent current rating of switching output DC [mA] |
100 |
| Switching frequency DC [Hz] |
< 200 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Measuring/setting range |
| Measuring range |
| -1…10 bar |
-15…145 psi |
-30…296 inHg |
-100…1000 kPa |
|
| Set point SP |
| -0.9…10 bar |
-13…145 psi |
-26…296 inHg |
-90…1000 kPa |
|
| Reset point rP |
| -0.95…9.95 bar |
-14…144 psi |
-28…294 inHg |
-95…995 kPa |
|
| In steps of |
| 0.05 bar |
1 psi |
2 inHg |
5 kPa |
|
| Accuracy / deviations |
| Switch point accuracy [% of the span] |
< ± 0,5 |
| Repeatability [% of the span] |
< ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation [% of the span] |
< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Hysteresis deviation [% of the span] |
< ± 0,25 |
| Long-term stability [% of the span] |
< ± 0,05; (per 6 months) |
| Temperature coefficient zero point [% of the span / 10 K] |
0,2; (0…60 °C) |
| Temperature coefficient span [% of the span / 10 K] |
0,2; (0…60 °C) |
| Response times |
| Response time [ms] |
< 2.5 |
| Delay time programmable dS, dr [s] |
0; 0,002…5 |
| Software / programming |
| Parameter setting options |
hysteresis / window; normally open / normally closed; diagnostic function; switching logic; switch-on/switch-off delay; Damping; Display unit |
| Operating conditions |
| Ambient temperature [°C] |
0…70 |
| Storage temperature [°C] |
-25…85 |
| Protection |
IP 65 |
| Mechanical data |
| Weight [g] |
84.5 |
| Materials |
PBT; FKM; polyester |
| Materials (wetted parts) |
brass; FKM; silicon (coated); PBT |
| Min. pressure cycles |
50 million |
| Process connection |
threaded connection G 1/8 internal thread |
| Displays / operating elements |
| Display |
| Display unit |
4 x LED, green |
| switching status |
2 x LED, yellow |
| function display |
alphanumeric display, 4-digit |
| measured values |
alphanumeric display, 4-digit |
|
| Display unit |
bar; kPa; psi; inHg |
| Accessories |
| Accessories (optional) |
| mounting set for DIN rail: TH 35-7,5 / EN60715, E37340 |
| Thread extension: 1/8″, E30075 |
| push-in air fitting for tube: Ø 6 mm, E30076 |
| push-in air fitting for tube: Ø 8 mm, E30077 |
|
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M8; Contacts: gold-plated |
