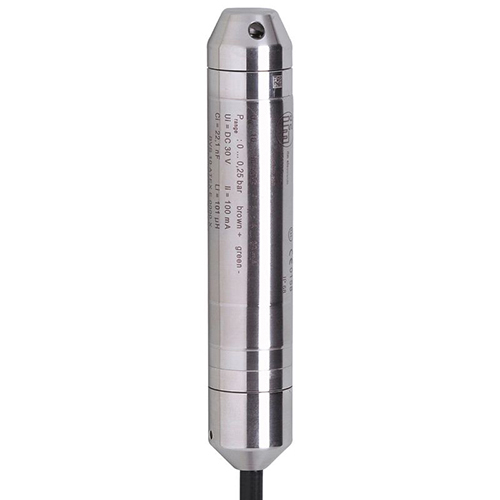

| Product characteristics |
| Output signal |
analogue signal |
| Measuring range |
| 0…0.25 bar |
0…250 mbar |
0…3.63 psi |
0…25 kPa |
|
| Application |
| Application |
for industrial applications |
| Media |
Liquids |
| Medium temperature [°C] |
-10…60; (T6: -10…60 °C; T5: -10…80 °C; T4: -10…85 °C; 1 D, 1/2 D, 2 D (750 mW): -10…40 °C; (650 mW): -10…70 °C; (550 mW): -10…85 °C) |
| Min. bursting pressure |
|
| Pressure rating |
|
| Type of pressure |
relative pressure |
| Electrical data |
| Switching amplifiers |
connection to intrinsically safe supply isolators (Ex ia) |
| Operating voltage [V] |
10…30 DC |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Inputs / outputs |
| Number of inputs and outputs |
Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs |
1 |
| Output signal |
analogue signal |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4…20 |
| Max. load [Ω] |
700; (Ub = 24 V; (Ub – 10 V) / 20 mA) |
| Short-circuit protection |
yes |
| Measuring/setting range |
| Measuring range |
| 0…0.25 bar |
0…250 mbar |
0…3.63 psi |
0…25 kPa |
|
| Accuracy / deviations |
| Repeatability [% of the span] |
< 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation [% of the span] |
< 0,25 (BFSL) / 0,5; (incl. linearity, zero and span error (limit value setting)) |
| Linearity deviation [% of the span] |
< 0,2 (BFSL) |
| Long-term stability [% of the span] |
< 0,2; (per year) |
| Temperature coefficient zero point [% of the span / 10 K] |
< ± 0,2; (0…50 °C) |
| Temperature coefficient span [% of the span / 10 K] |
< ± 0,2; (0…50 °C) |
| Operating conditions |
| Ambient temperature [°C] |
-10…60 |
| Note on ambient temperature |
| T6: -10…60 °C |
| T5: -10…80 °C |
| T4: -10…85 °C |
| 1 D, 1/2 D, 2 D (750 mW): -10…40 °C |
| 1 D, 1/2 D, 2 D (650 mW): -10…70 °C |
| 1 D, 1/2 D, 2 D (550 mW): -10…85 °C |
|
| Storage temperature [°C] |
-10…60 |
| Protection |
IP 68 |
| Mechanical data |
| Weight [g] |
656.5 |
| Materials |
stainless steel (1.4571/316Ti ) |
| anzeigen-bedienelemente |
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Cable: 5 m, FEP, Ø 7.5 mm |
