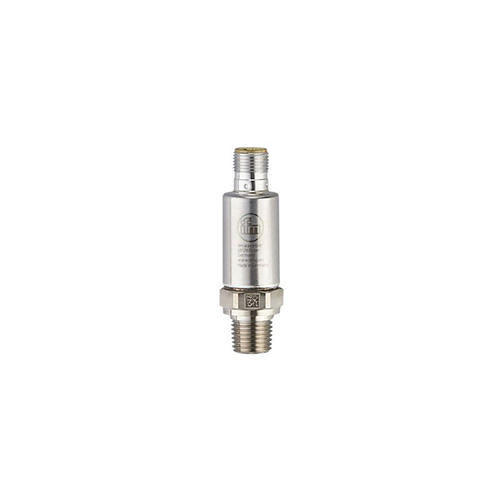

| Product characteristics |
| Output signal |
switching signal; IO-Link; (configurable) |
| Measuring range |
| 0…400 bar |
0…5800 psi |
0…40 MPa |
|
| Process connection |
threaded connection 1/4″ NPT external thread internal thread:M5 |
| Application |
| Measuring element |
metallic thin film cell |
| Application |
for industrial applications |
| Media |
liquids and gases |
| Medium temperature [°C] |
-40…90 |
| Min. bursting pressure |
| 1700 bar |
24655 psi |
170 MPa |
|
| Pressure rating |
| 1000 bar |
14500 psi |
100 Mpa |
|
| Note on pressure rating |
|
| Vacuum resistance [mbar] |
-1000 |
| Type of pressure |
relative pressure |
| MAWP (for applications according to CRN) [bar] |
840 |
| Electrical data |
| Operating voltage [V] |
18…30 DC |
| Current consumption [mA] |
< 15 |
| Min. insulation resistance [MΩ] |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
< 0.3 |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
switching signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2 |
| Permanent current rating of switching output DC [mA] |
100 |
| Switching frequency DC [Hz] |
< 170 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Measuring/setting range |
| Measuring range |
| 0…400 bar |
0…5800 psi |
0…40 MPa |
|
| Set point SP |
| 4…400 bar |
58…5802 psi |
0.4…40 MPa |
|
| Reset point rP |
| 2…398 bar |
30…5773 psi |
0.2…39.8 MPa |
|
| In steps of |
|
| Factory setting |
| SP1 = 100 bar |
rP1 = 92 bar |
ou1 = Hno; |
| SP2 = 300 bar |
rP2 = 292 bar |
ou2 = Hno; |
| dS1/dS2 = 0 ms |
dr1/dr2 = 0 ms |
|
| coF = 0 % |
P-n = PnP |
dAP= 60 ms |
|
| Accuracy / deviations |
| Switch point accuracy [% of the span] |
< ± 0,5 (nach DIN EN 61298-2) |
| Repeatability [% of the span] |
< ± 0,05; (with temperature fluctuations < 10 K) |
| Characteristics deviation [% of the span] |
< ± 0,5 (nach DIN EN 61298-2); (incl. drift when overtightened, zero point and span error, non-linearity, hysteresis) |
| Linearity deviation [% of the span] |
< ± 0,1 (BFSL) / < ± 0,2 (LS) |
| Hysteresis deviation [% of the span] |
< ± 0,2 |
| Long-term stability [% of the span] |
< ± 0,1; (per 6 months) |
| Temperature coefficient zero point [% of the span / 10 K] |
< 0,1 (-25…90 °C) / < 0,2 (-40…-25 °C) |
| Temperature coefficient span [% of the span / 10 K] |
< 0,1 (-25…90 °C) / < 0,2 (-40…-25 °C) |
| Response times |
| Response time [ms] |
< 3 |
| Software / programming |
| Parameter setting options |
hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis |
| SIO mode |
yes |
| Required master port type |
A |
| Process data analogue |
2 |
| Process data binary |
2 |
| Min. process cycle time [ms] |
5 |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
851 |
|
| Operating conditions |
| Ambient temperature [°C] |
-40…90 |
| Storage temperature [°C] |
-40…100 |
| Protection |
IP 67; IP 69K |
| Mechanical data |
| Weight [g] |
65 |
| Materials |
1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI |
| Materials (wetted parts) |
stainless steel (1.4305 / 303); 1.4542 (17-4 PH / 630) |
| Min. pressure cycles |
60 million; (at 1.2 times nominal pressure) |
| Tightening torque [Nm] |
50; (recommended tightening torque; depends on lubrication, seal and pressure rating) |
| Process connection |
threaded connection 1/4″ NPT external thread internal thread:M5 |
| Restrictor element integrated |
yes |
| Remarks |
| Remarks |
| BFSL = Best Fit Straight Line |
| LS = limit value setting |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12 |
