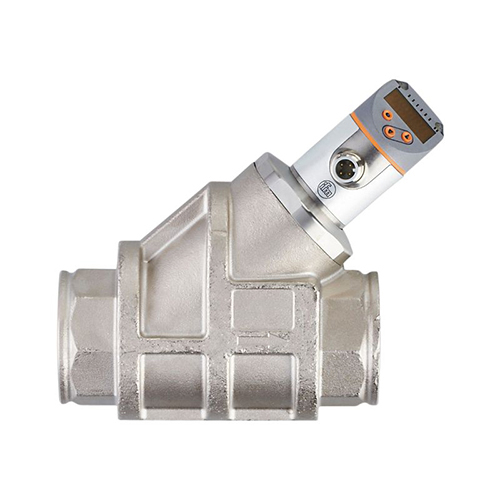

Cảm biến lưu lượng IFM SB1257 63 bar

Sản phẩm cùng loại

Gửi tin nhắn

Gọi cho chúng tôi

Chat qua facebook

Chat qua zalo

Văn phòng

Product characteristics

Process connection

threaded connection G 1 1/2 internal thread

Temperature monitoring

Measuring range


-10…100 °C	14…212 °F

Application

Special feature

Gold-plated contacts

Media

Liquids; oil

Note on media


oil with viscosity: 10 mm²/s (40 °C)

Medium temperature [°C]

-10…100

Pressure rating [bar]

Pressure rating [Mpa]

6.3

Note on pressure rating


at medium temperature >70°C: 50 bar / 5 MPa

Electrical data

Operating voltage [V]

18…30 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

< 50

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

< 3

Outputs

Total number of outputs

Output signal

switching signal; analogue signal; frequency signal; IO-Link

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

Max. current load per output [mA]

150; (200: …60 °C; Ambient temperature; 250: …40 °C; Ambient temperature)

Analogue current output [mA]

4…20

Max. load [Ω]

500

Short-circuit protection

yes

Overload protection

yes

Frequency of the output [Hz]

0…10000

Measuring/setting range

Measuring range


4…200 l/min	0.24…12 m³/h	65…3170 gph	1.1…52.8 gpm

Display range


0…240 l/min	0…14.4 m³/h	0…3805 gph	0…63.4 gpm

Resolution


0.1 l/min	0.01 m³/h	1 gph	0.1 gpm

Set point SP


1.4…200 l/min	0.08…12 m³/h	20…3170 gph	0.3…52.8 gpm

Reset point rP


0…198.6 l/min	0…11.92 m³/h	0…3150 gph	0…52.5 gpm

Frequency end point, FEP


13.4…200 l/min	0.8…12 m³/h	210…3170 gph	3.5…52.8 gpm

In steps of


0.02 l/min	0.02 m³/h	5 gph	0.1 gpm

Frequency at the end point FRP [Hz]

10…10000

In steps of [Hz]

Measuring dynamics

1:50

In steps of

10 Hz

Temperature monitoring

Measuring range


-10…100 °C	14…212 °F

Display range


-32…122 °C	-25.6…251.6 °F

Resolution


0.1 °C	0.1 °F

Set point SP


-9.3…100 °C	15.2…212 °F

Reset point rP


-10…99.3 °C	14…210.8 °F

In steps of


0.1 °C	0.2 °F

Frequency start point, FSP


-10…78 °C	14…172.4 °F

Frequency end point, FEP


12…100 °C	53.6…212 °F

Frequency at the end point FRP [Hz]

10…10000

Accuracy / deviations

Flow monitoring

Accuracy (in the measuring range)

± 5 % MEW; (Q > 1 l/min; 20…70 °C Medium temperature)

Repeatability

± 1 % MEW

Temperature monitoring

Temperature drift

0,029 °C / K

Accuracy [K]

3 K (25°C; Q > 1 l/min)

Response times

Flow monitoring

Response time [s]

0.01

Damping for the switching output dAP [s]

0…5

In steps of [s]

0.1

Damping for the analogue output dAA [s]

0…5

In steps of [s]

0.1

Temperature monitoring

Dynamic response T05 / T09 [s]

T09 = 120 (Q > 1 l/min)

Software / programming

Parameter setting options

hysteresis / window; normally open / normally closed; switching logic; current/frequency output; damping for the switching output / analogue output; display can be rotated and switched off; standard unit of measurement; process value colour; calibration factor

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9 CDV

Profiles

Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis

SIO mode

yes

Required master port type

Process data analogue

Process data binary

Min. process cycle time [ms]

3.2

Supported DeviceIDs


Type of operation	DeviceID
Default	1047
