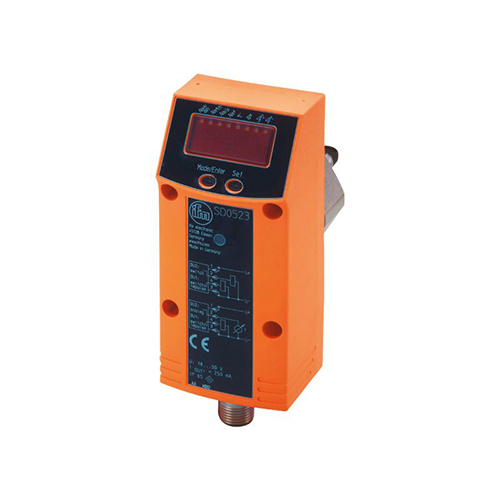

| Product characteristics |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
| Measuring range |
| 0.5…143.9 m/s |
8…2110 m³/h |
0.12…35.18 m³/min |
|
| Process connection |
threaded connection G 1 internal thread |
| Application |
| Installation |
Adjustable to inside pipe diameters; (38…254 mm) |
| Media |
compressed air |
| Medium temperature [°C] |
0…60 |
| Pressure rating [bar] |
16 |
| Pressure rating [Mpa] |
1.6 |
| Pressure rating [psi] |
232 |
| MAWP (for applications according to CRN) [bar] |
16 |
| Electrical data |
| Operating voltage [V] |
18…30 DC; (according to EN 50178 SELV/PELV) |
| Current consumption [mA] |
< 110 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
1 |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
switching signal; analogue signal; pulse signal; IO-Link; (configurable) |
| Electrical design |
PNP |
| Number of digital outputs |
2 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2 |
| Permanent current rating of switching output DC [mA] |
250; (per output) |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4…20; (scalable) |
| Max. load [Ω] |
500 |
| Pulse output |
consumed quantity meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Measuring/setting range |
| Measuring range |
Measuring/setting range; Flow monitoring; The values apply at: Ø 72 mm |
| Measuring range |
| 0.5…143.9 m/s |
8…2110 m³/h |
0.12…35.18 m³/min |
|
| Display range |
| 0…172.7 m/s |
0…2532 m³/h |
0…42.22 m³/min |
|
| Resolution |
| 0.1 m/s |
2 m³/h |
0.02 m³/min |
|
| Set point SP |
| 1.2…143.9 m/s |
18…2110 m³/h |
0.28…35.18 m³/min |
|
| Reset point rP |
| 0.5…143.2 m/s |
6…2100 m³/h |
0.12…35 m³/min |
|
| Analogue start point ASP |
| 0…107.9 m/s |
0…1582 m³/h |
0…26.38 m³/min |
|
| Analogue end point AEP |
| 36…143.9 m/s |
528…2110 m³/h |
8.8…35.18 m³/min |
|
| In steps of |
| 0.1 m/s |
2 m³/h |
0.02 m³/min |
|
| Volumetric flow quantity monitoring |
| Pulse value |
1…1000 x 10³ |
| In steps of |
1 Nm³ |
| Pulse length [s] |
0,7…2 (D = 72 mm) |
| Temperature monitoring |
| Measuring range [°C] |
0…60 |
| Display range [°C] |
-12…72 |
| Resolution [°C] |
0.2 |
| Set point SP [°C] |
0.4…60 |
| Reset point rP [°C] |
0.2…59.8 |
| Analogue start point [°C] |
0…45 |
| Analogue end point [°C] |
15…60 |
| In steps of [°C] |
0.2 |
| Accuracy / deviations |
| Flow monitoring |
| Repeatability [% of the measured value] |
± 1,5 |
| Accuracy (in the measuring range) |
± (6 % MW + 0,6 % MEW); (D = 72mm, T = 22 °C; standard volume flow: 50…850 Nm³/h) |
| Temperature monitoring |
| Accuracy [K] |
± 2,5 (Q > 2 Nm³/h) |
| Response times |
| Flow monitoring |
| Response time [s] |
0.1; (dAP = 0) |
| Damping for the switching output dAP in steps [s] |
0 – 0,2 – 0,4 – 0,6 – 0,8 – 1 |
| Temperature monitoring |
| Dynamic response T05 / T09 [s] |
30 (Q > 2 Nm³/h) |
| Software / programming |
| Parameter setting options |
Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; current/pulse output; display can be rotated and switched off; Display unit; totaliser |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Smart Sensor: Process Data Variable; Device Identification |
| SIO mode |
yes |
| Required master port type |
A |
| Process data analogue |
3 |
| Process data binary |
2 |
| Min. process cycle time [ms] |
5 |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
381 |
|
| Operating conditions |
| Ambient temperature [°C] |
0…60 |
| Storage temperature [°C] |
-20…85 |
| Max. relative air humidity [%] |
90 |
| Protection |
IP 65 |
| Mechanical data |
| Weight [g] |
442 |
| Materials |
PBT-GF20; PC; stainless steel (1.4301 / 304); FKM |
| Materials (wetted parts) |
stainless steel (1.4401 / 316); stainless steel (1.4301 / 304); ceramics glass passivated; PEEK; polyester; FKM |
| Process connection |
threaded connection G 1 internal thread |
| Displays / operating elements |
| Display |
| Display unit |
4 x LED, green (Nm³/min, Nm³/h, Nm³, °C) |
| function display |
1 x LED, green |
| switching status |
2 x LED, yellow |
| measured values |
alphanumeric display, 4-digit |
