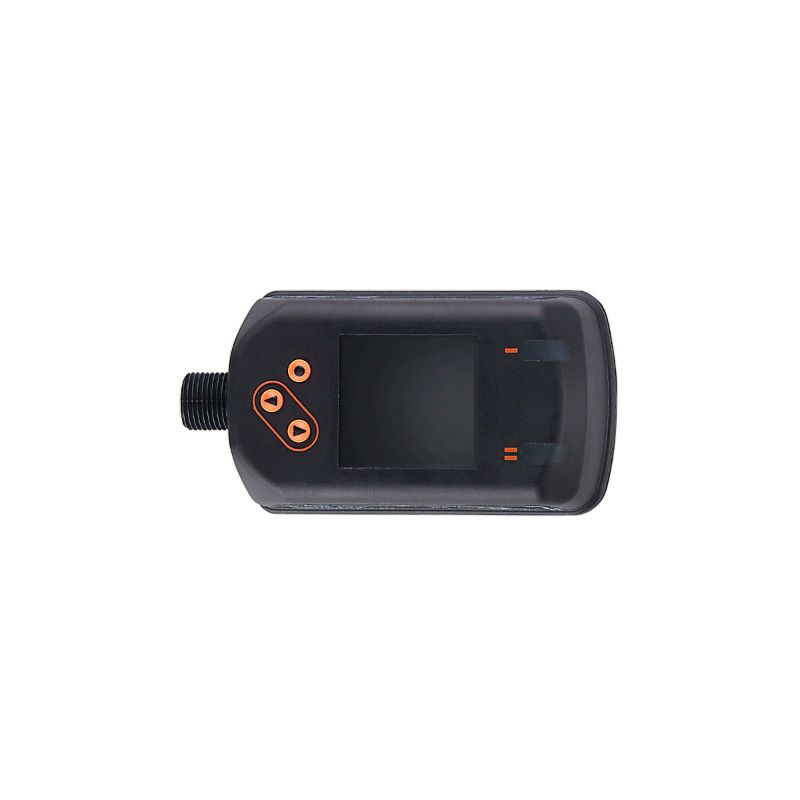

Cảm biến lưu lượng IFM SD1540 16 bar

Product characteristics

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Measuring range


0.6…143.9 m/s	0.3…26260 m³/h	0.005…437.6 m³/min

Process connection

threaded connection G 1 internal thread

Application

for industrial applications

Installation

Adjustable to inside pipe diameters; ( 14…254 mm)

Media

compressed air

Medium temperature [°C]

-10…60

Min. bursting pressure [bar]

Min. bursting pressure [MPa]

6.4

Pressure rating [bar]

Pressure rating [Mpa]

1.6

Electrical data

Operating voltage [V]

18…30 DC; (according to EN 50178 SELV/PELV)

Current consumption [mA]

< 80

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

counter reset

Outputs

Output signal

switching signal; analogue signal; pulse signal; IO-Link; (configurable)

Electrical design

PNP/NPN

Number of digital outputs

Output function

normally open / normally closed; (parameterisable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

150; (per output)

Number of analogue outputs

Analogue current output [mA]

4…20; (scalable)

Max. load [Ω]

500

Pulse output

consumed quantity meter

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Measuring/setting range

Measuring range


0.6…143.9 m/s	0.3…26260 m³/h	0.005…437.6 m³/min

Display range


0…172.7 m/s	0…31520 m³/h	0…525.2 m³/min

Resolution


0.1 m/s	0.05 m³/h	0.01 m³/min

Set point SP


1.4…143.9 m/s	0.8…26260 m³/h	0.013…437.6 m³/min

Reset point rP


0.7…143.2 m/s	0.4…26140 m³/h	0.007…435.6 m³/min

Analogue start point ASP


0…115.1 m/s	0…21000 m³/h	0…350 m³/min

Analogue end point AEP


28.8…143.9 m/s	422…26260 m³/h	7.04…437.6 m³/min

Low flow cut-off LFC


0.2…1.4 m/s	0.1…260 m³/h	0.002…4.4 m³/min

In steps of


0.1 m/s	0.01 m³/h	0.001 m³/min

Pressure monitoring

Measuring range [bar]

-1…16

Display range [bar]

-1…20

Resolution [bar]

0.05

Set point SP [bar]

-0.92…16

Reset point rP [bar]

-1…15.92

Analogue start point [bar]

-1…12.8

Analogue end point [bar]

2.2…16

In steps of [bar]

0.01

Volumetric flow quantity monitoring

Measuring range


0…1000000000 m³	0…35314666721 scf

Display range


0…1000000000 m³	0…35314666721 scf

Set point SP


0.01…100000000 m³	0.35…3531466672.1 scf

Pulse value


0.01…100000000 m³	0.35…3531466672.1 scf

In steps of


0.001 m³	0.05 scf

Pulse length [s]

0.001…2

Temperature monitoring

Measuring range


-10…60 °C	14…140 °F

Display range


-24…74 °C	-11.2…165.2 °F

Resolution


0.2 °C	0.5 °F

Set point SP


-9.7…60 °C	14.6…140 °F

Reset point rP


-10…59.7 °C	14…139.4 °F

Analogue start point


-10…46 °C	14…114.8 °F

Analogue end point


4…60 °C	39.2…140 °F

In steps of


0.1 °C	0.1 °F

Accuracy / deviations

Temperature coefficient [1/K]

± 0,07 % MW
