| Product characteristics | |||
|---|---|---|---|
| Number of inputs and outputs | Number of analogue outputs: 1 | ||
| Process connection | M18 x 1,5 internal thread | ||
| Application | |||
| Media | Liquids | ||
| Medium temperature [°C] | -25…80 | ||
| Pressure rating [bar] | 300 | ||
| MAWP (for applications according to CRN) [bar] | 208 | ||
| Liquids | |||
| Medium temperature [°C] | -25…80 | ||
| Electrical data | |||
| Operating voltage [V] | 19…36 DC | ||
| Current consumption [mA] | < 60 | ||
| Protection class | III | ||
| Reverse polarity protection | yes | ||
| Power-on delay time [s] | 10 | ||
| Inputs / outputs | |||
| Number of inputs and outputs | Number of analogue outputs: 1 | ||
| Outputs | |||
| Total number of outputs | 1 | ||
| Output signal | analogue signal | ||
| Number of analogue outputs | 1 | ||
| Analogue current output [mA] | 4…20 | ||
| Max. load [Ω] | 500 | ||
| Overload protection | yes | ||
| Measuring/setting range | |||
| Liquids | |||
| Setting range [cm/s] | 3…300 | ||
| Greatest sensitivity [cm/s] | 3…100 | ||
| Accuracy / deviations | |||
| Repeatability [cm/s] | 1…5 | ||
| Note on repeatability |
|
||
| Temperature drift [cm/s x 1/K] | 0.1; (for water 5…100 cm/s; 10…70 °C) | ||
| Measuring error [% of the final value] | ± 2…± 10 | ||
| Response times | |||
| Response time [s] | 1…10 | ||
| Liquids | |||
| Response time [s] | 1…10 | ||
| Operating conditions | |||
| Ambient temperature [°C] | -25…80 | ||
| Storage temperature [°C] | -25…100 | ||
| Protection | IP 67 | ||
| Mechanical data | |||
| Weight [g] | 248 | ||
| Dimensions [mm] | M18 x 1.5 | ||
| Thread designation | M18 x 1.5 | ||
| Materials | stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X | ||
| Materials (wetted parts) | stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A | ||
| Process connection | M18 x 1,5 internal thread | ||
| Displays / operating elements | |||
| Display |
|
||
| Remarks | |||
| Pack quantity | 1 pcs. | ||
| Electrical connection | |||
| Connection | Connector: 1 x M12 | ||

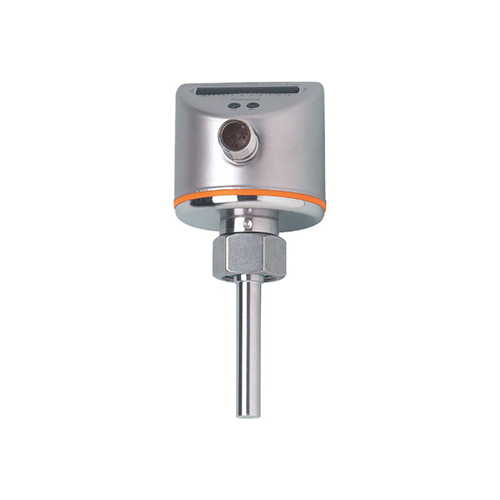

Cảm biến lưu lượng IFM SI5004 300 bar
Danh mục sản phẩm
-
Cảm biến lưu lượng IFM SI5004 300 bar
- Lượt xem: 587
- Cảm biến lưu lượng IFM SI5004 300 bar
