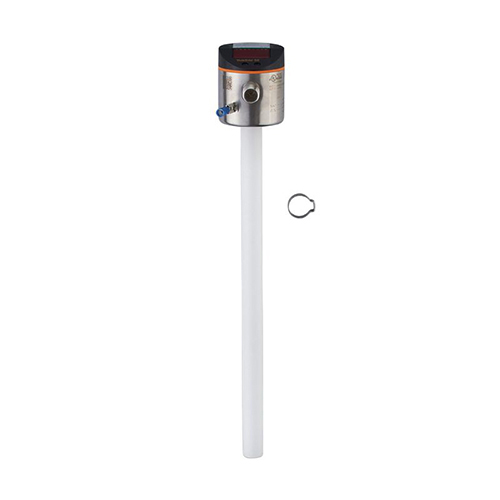

| Product characteristics |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
| Factory setting |
mineral oils |
| Probe length L [mm] |
264 |
| Application |
| Media |
hydrous coolants; oils; oil-based media; water; media similar to water |
| Dielectric constant of the medium |
> 2 |
| Cannot be used for |
extremely conductive media; adhering media; granulates; bulk material; acids; alkali |
| Tank pressure [bar] |
0.5; (when mounting with mounting accessories: E43001 – E43007, E43019) |
| Coolants |
| Medium temperature [°C] |
0…35; (with climatic tube E43100 35…65 °C) |
| Oil |
| Medium temperature [°C] |
0…70 |
| Medium temperature short time [°C] |
0…90; (< 1 h) |
| Water |
| Medium temperature [°C] |
0…35; (with climatic tube E43100 35…65 °C) |
| Electrical data |
| Operating voltage [V] |
18…30 DC |
| Current consumption [mA] |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
< 3 |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
switching signal; analogue signal; IO-Link |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
1 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
200 |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4…20, invertible |
| Max. load [Ω] |
500 |
| Analogue voltage output [V] |
…10, invertible |
| Min. load resistance [Ω] |
2000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
thermal, pulsed |
| Overload protection |
yes |
| Measuring/setting range |
| Factory setting |
mineral oils |
| Probe length L [mm] |
264 |
| Active range A [mm] |
195 |
| Inactive range I1 / I2 [mm] |
53 / 16 |
| Setting range |
| Set point SP [mm] |
25…200 |
| Reset point rP [mm] |
20…195 |
| In steps of [mm] |
5 |
| Reference point OP [mm] |
69 – 82 – 94 – 106 – 118 – 130 – 143 – 155 – 167 – 179 – 191 – 204 – OFF |
| Hysteresis, OP [mm] |
2 |
| Temperature monitoring |
| Measuring range [°C] |
0…90 |
| Set point SP [°C] |
0.5…90 |
| Reset point rP [°C] |
0…89.5 |
| In steps of [°C] |
0.5 |
| Resolution of switching output [K] |
0.5 |
| Accuracy / deviations |
| Measuring error [% of the final value] |
± 5 |
| Repeatability |
± 2 |
| Resolution [mm] |
5 |
| Zero signal (voltage) [V] |
0 |
| Zero signal (current) [mA] |
4.0 |
| Full signal (voltage) [V] |
10 |
| Full signal (current) [mA] |
20 |
| Temperature monitoring |
| Switch point accuracy [K] |
± 1,5 |
| Resolution [K] |
0.5 |
| Dynamic response T09 [s] |
90 |
| Software / programming |
| Parameter setting options |
hysteresis / window; normally open / normally closed; switching logic; current/voltage output; SP/rP position; adjustment OP; medium selection; offset setting; switch-on/switch-off delay |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis |
| SIO mode |
yes |
| Required master port type |
A |
| Process data analogue |
4 |
| Process data binary |
1 |
| Min. process cycle time [ms] |
4.5 |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
646 |
|
| Operating conditions |
| Ambient temperature [°C] |
0…60 |
| Storage temperature [°C] |
-25…80 |
| Protection |
IP 67 |
| Mechanical data |
| Weight [g] |
353 |
| Dimensions [mm] |
Ø 16 |
| Materials |
stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; NBR; PBT; PC; PA; PP; TPV |
| Materials (wetted parts) |
PP |
| Displays / operating elements |
| Display |
| Display unit |
4 x LED, green (cm, inch, °C, °F) |
| switching status |
1 x LED, yellow |
| measured values |
alphanumeric display, 4-digit |
| parameter setting |
alphanumeric display, 4-digit |
|
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12 |
