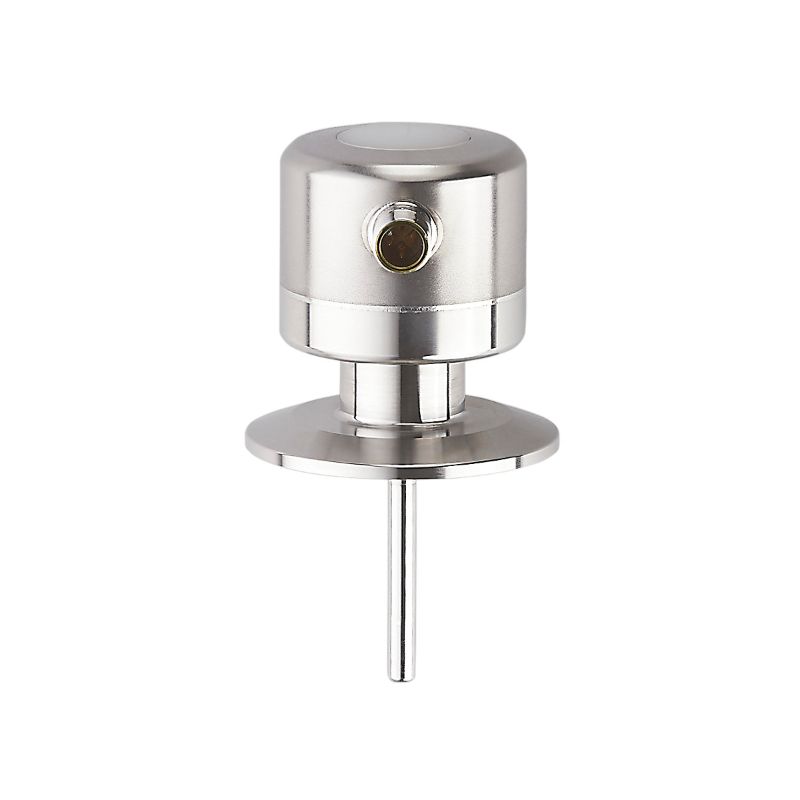

| Product characteristics |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
| Measuring range |
|
| Process connection |
Clamp DN50 (2″) DIN 32676 (ISO 2852) |
| Installation length EL [mm] |
100 |
| Application |
| Special feature |
Gold-plated contacts |
| Measuring element |
1 x Pt 1000 |
| Reference element |
1 x NTC |
| Media |
liquids and gases |
| Pressure rating [bar] |
160 |
| Electrical data |
| Operating voltage [V] |
18…32 DC; (“supply class 2” to cULus) |
| Current consumption [mA] |
10; (24 V) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
6 |
| Integrated watchdog |
yes |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
analogue signal; IO-Link; calibration check status |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
1 |
| Output function |
normally open; (diagnostic signal) |
| Max. voltage drop switching output DC [V] |
2 |
| Permanent current rating of switching output DC [mA] |
100 |
| Diagnostic output |
calibration check status and error diagnostics |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4…20 |
| Max. load [Ω] |
(Ub – 15 V) x 50 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Measuring/setting range |
| Measuring range |
|
| Note on measuring range |
|
| Factory setting |
-10…150 °C / 14…302 °F |
| Calibration check limit [K] |
0.5…3 |
| In steps of [K] |
0.05 |
| Resolution |
| Resolution of analogue output [K] |
0.05 |
| Accuracy / deviations |
| Precision analogue output [K] |
± 0,2 |
| Precision IO-Link [K] |
± 0,2 |
| Temperature coefficient analogue output [% of the span / 10 K] |
< ± 0,02; (in case of deviation from the reference condition 25 ± 5 °C) |
| Temperature coefficient IO-Link [% of the span / 10 K] |
< ± 0,01; (in case of deviation from the reference condition 25 ± 5 °C) |
| Response times |
| Dynamic response T05 / T09 [s] |
1,5 / 4 |
| Software / programming |
| Parameter setting options |
Display unit; scaling of the analogue output; calibration check limit; switching logic diagnostic output; simulation mode |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
Digital Measuring Sensor, Common Profile, Blob Transfer |
| SIO mode |
yes |
| Required master port type |
A |
| Process data analogue |
1 |
| Process data binary |
1 |
| Min. process cycle time [ms] |
4.4 |
| IO-Link resolution temperature [K] |
0.01 |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
1129 |
|
| Operating conditions |
| Ambient temperature [°C] |
-25…70 |
| Note on ambient temperature |
| max. internal device temperature: 125 °C |
|
| Storage temperature [°C] |
-40…100 |
| Protection |
IP 68; IP 69K |
| Mechanical data |
| Weight [g] |
416 |
| Dimensions [mm] |
Ø 50 / L = 164.8 |
| Materials |
stainless steel (1.4404 / 316L); PEI; FKM; PFA |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); PEEK |
| Process connection |
Clamp DN50 (2″) DIN 32676 (ISO 2852) |
| Surface characteristics Ra/Rz of the wetted parts |
Ra: < 0.8 |
| Probe diameter [mm] |
6 |
| Installation length EL [mm] |
100 |
| Remarks |
| Remarks |
| MS = set measuring span |
| operating voltage “supply class 2” according to cULus |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12; Contacts: gold-plated |
