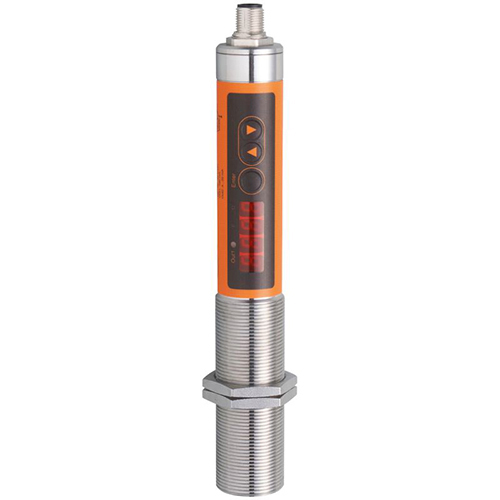

| Product characteristics |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
| Measuring range |
|
| Application |
| Application |
tempering temperatures; glass melting; graphite; ceramics; metals; forging; sintering; heat treatment; rolling |
| Electrical data |
| Operating voltage [V] |
18…32 DC; (to SELV/PELV) |
| Current consumption [mA] |
< 50 |
| Min. insulation resistance [MΩ] |
100; (50 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
< 1 |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
| Inputs |
| Test input |
type 3 (IEC 61131-2) |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
switching signal; analogue signal; IO-Link; (configurable) |
| Electrical design |
PNP |
| Number of digital outputs |
1 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
150 |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4…20 |
| Max. load [Ω] |
500 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Detection zone |
| Wave length range [µm] |
1…1.7 |
| Measuring/setting range |
| Measuring range |
|
| Set point SP |
|
| Reset point rP |
|
| Analogue start point |
|
| Analogue end point |
|
| In steps of |
|
| Resolution |
| Resolution of switching output [K] |
1 |
| Resolution of analogue output [K] |
0.2; (+ 0.03% of the set measuring span) |
| Resolution of display [K] |
1 |
| Accuracy / deviations |
| Accuracy [K] |
< ± 0,5 %; (of measured value, min. 4 K (degree of emission = 1, T = 23 °C)) |
| Repeatability [K] |
1 |
| Response times |
| Response time [ms] |
2; (T > 600 °C) |
| Software / programming |
| Adjustment of the switch point |
programming buttons |
| Parameter setting options |
analogue range; normally open / normally closed; switch-on/switch-off delay; Damping; Peakhold; emissivity; simulation function |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| SIO mode |
yes |
| Required master port type |
A |
| Process data analogue |
16 |
| Process data binary |
1 |
| Min. process cycle time [ms] |
3.6 |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
717 |
|
| Operating conditions |
| Ambient temperature [°C] |
0…65 |
| Storage temperature [°C] |
-20…80 |
| Max. relative air humidity [%] |
95; (non condensing) |
| Protection |
IP 65 |
| Mechanical data |
| Weight [g] |
544 |
| Housing |
threaded type |
| Dimensions [mm] |
M30 x 1.5 / L = 239.5 |
| Thread designation |
M30 x 1.5 |
| Materials |
threaded sleeve: stainless steel (1.4305 / 303); polyester |
| Lens material |
|
| Displays / operating elements |
| Display |
| Display unit |
2 x LED, yellow |
| switching status |
1 x LED, yellow |
| function display |
7-segment LED display, 4-digit |
| measured values |
7-segment LED display, 4-digit |
| setting aid |
LED pilot light, green |
|
| Operating elements |
|
| Accessories |
| Accessories (supplied) |
|
| Remarks |
| Remarks |
| Use a screened cable to protect infrared temperature sensors from interference. |
| The screen must be connected to the housing of the sensor via the connector. |
|
| Pack quantity |
1 pcs. |
