| Model | FT-H50K | |||
| Type | High temperature, Ultra long-range | |||
| Rated temperature range | 0 to 1350°C 32 to 2462°F*1 | |||
| Displayable temperature range | -50 to +1400°C -58 to 2552°F | |||
| Detecting distance | Unlimited*2 | |||
| Measuring distance /View diameter (example) | 500/ø18 mm 15.69″/ø0.71″1500/ø30 mm 59.06″/ø1.18″3000/ø75 mm 118.11″/ø2.95″ | |||
| Sight | 2-point visible laser beam*3 | |||
| Detecting element | Thermopile | |||
| Detecting wavelength | 8 to 14 µm | |||
| Repeatability | ±3°C 5.4°F | |||
| Emissivity (ε) correction | 0.10 to 1.99 (0.01 step) | |||
| Environmental resistance | Ambient temperature | -10 to +55 °C 14 to 131 °F (No freezing) | ||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z axis | |||
| Shock resistance | 500 m/s2, 10 times in each direction of each of X, Y and Z axis, 60 times in total | |||
| Material | Case: Reinforced glass plastic, Infrared collector lens: Germanium, Laser transmitter: PolyarylateLens tube: Aluminum, Cable: Vinyl chloride, Mounting bracket: SUS304, Mounting screw: Stainless steel | |||
| Accessory | Mounting bracket | |||
| Weight | Approx. 150 g | |||

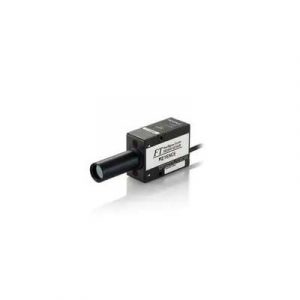

Cảm biến nhiệt độ Keyence FT-H50K
Danh mục sản phẩm
-
Cảm biến nhiệt độ Keyence FT-H50K
- Lượt xem: 822
- Cảm biến nhiệt độ Keyence FT-H50K
