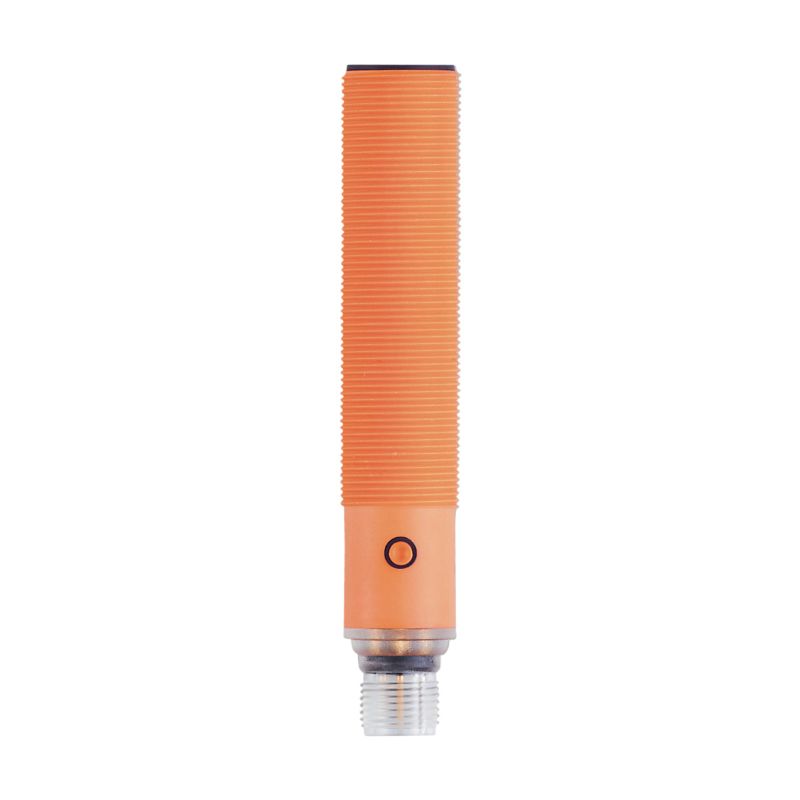

| Product characteristics |
| Electrical design |
PNP |
| Output function |
normally open / normally closed; (parameterisable + 1x current output) |
| Sensing range [mm] |
200…2200; (Target: 200 x 200 mm) |
| Communication interface |
IO-Link |
| Housing |
threaded type |
| Dimensions [mm] |
M18 x 1 / L = 97.5 |
| Electrical data |
| Operating voltage [V] |
10…30 DC; (“supply class 2” to cULus) |
| Current consumption [mA] |
55 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
< 0.3 |
| Converter frequency [kHz] |
200 |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs |
2 |
| Electrical design |
PNP |
| Number of digital outputs |
1 |
| Output function |
normally open / normally closed; (parameterisable + 1x current output) |
| Max. voltage drop switching output DC [V] |
2.2 |
| Permanent current rating of switching output DC [mA] |
100 |
| Switching frequency DC [Hz] |
2 |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4…20 |
| Max. load [Ω] |
500 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Resolution of analogue output |
< 3 mm |
| Detection zone |
| Sensing range [mm] |
200…2200; (Target: 200 x 200 mm) |
| Blind zone [mm] |
200 |
| Angle of aperture cylindrical [°] |
14; (±2) |
| Max. deviation from the 90° angle sensor/object [°] |
± 4 |
| Accuracy / deviations |
| Temperature compensation |
yes |
| Hysteresis [%] |
< 2 |
| Switch point drift [%] |
-2…2 |
| Linearity error of analogue output [%] |
<3 |
| Notes on the accuracy / deviation |
The indicated values are reached after a warm-up time of min. 20 minutes |
| Repeatability |
1 % |
| Response times |
| Response time [ms] |
< 300; (analogue output) |
| Software / programming |
| Parameter setting options |
hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable; Device Diagnosis; Teach Channel |
| SIO mode |
yes |
| Required master port type |
A |
| Min. process cycle time [ms] |
3.2 |
| IO-Link process data (cyclical) |
| function |
bit length |
| process value |
16 |
| device status |
4 |
| binary switching information |
2 |
|
| IO-Link functions (acyclical) |
application specific tag; operating hours counter |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
704 |
|
| Note |
| For further information please see the IODD PDF file under “Downloads” |
|
| Operating conditions |
| Ambient temperature [°C] |
-20…70 |
| Storage temperature [°C] |
-30…80 |
| Protection |
IP 67 |
| Mechanical data |
| Weight [g] |
67.5 |
| Housing |
threaded type |
| Dimensions [mm] |
M18 x 1 / L = 97.5 |
| Thread designation |
M18 x 1 |
| Materials |
PBT; PA; epoxy glass ceramics |
| Tightening torque [Nm] |
1 |
| Displays / operating elements |
| Display |
| switching status |
2 x LED, yellow |
| echo |
1 x LED, green |
|
| Teach function |
yes |
| Accessories |
| Accessories (supplied) |
| lock nuts: 2, plastics |
| rubber washers: 2 |
|
| Remarks |
| Remarks |
| operating voltage “supply class 2” according to cULus |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12 |
