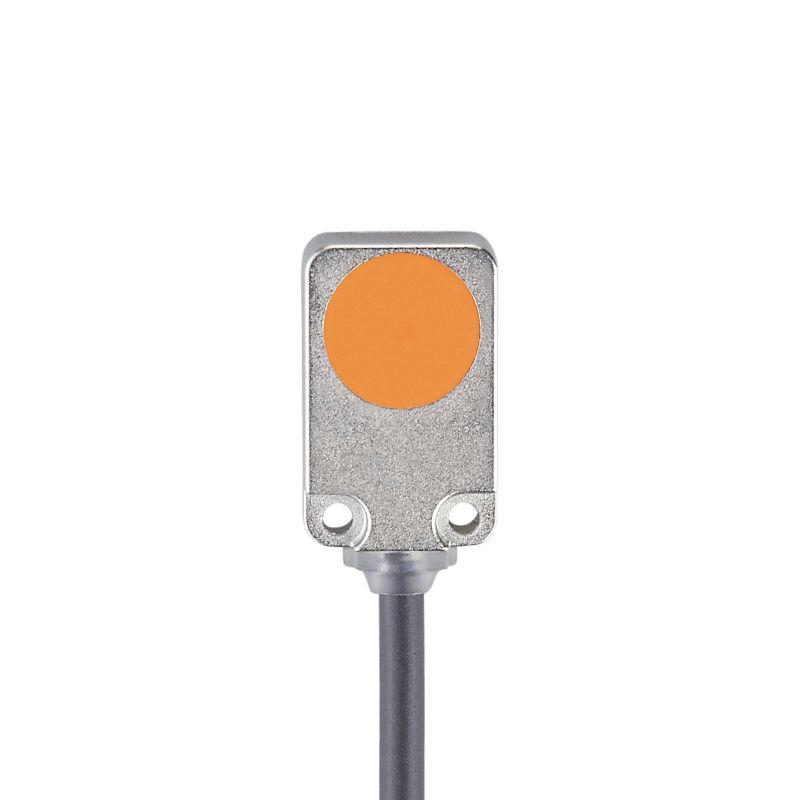

| Product characteristics |
| Electrical design |
PNP/NPN; (parameterisable) |
| Output function |
normally open / normally closed; (parameterisable) |
| Communication interface |
IO-Link |
| Housing |
rectangular |
| Dimensions [mm] |
20 x 8 x 32 |
| Application |
| Special feature |
Drag chain suitability |
| Electrical data |
| Operating voltage [V] |
10…30 DC |
| Current consumption [mA] |
< 30 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Outputs |
| Electrical design |
PNP/NPN; (parameterisable) |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
100 |
| Switching frequency DC [Hz] |
300 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Detection zone |
| Switch point IO-Link [mm] |
1.4…7; (parameterisable) |
| Measuring range IO-Link [mm] |
0.75…7.5 |
| Accuracy / deviations |
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
| Hysteresis [% of Sr] |
3…15 |
| Note on hysteresis |
|
| Linearity error IO-Link [%] |
± 2; (of the final value of the measuring range) |
| Repeatability IO-Link [%] |
± 1; (of the final value of the measuring range) |
| Temperature coefficient [%/K vom MEW] |
± 0,6; (-25…70 °C: ± 0,3) |
| Temperature drift [% vom MEW] |
± 10 |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel |
| SIO mode |
yes |
| Required master port type |
A |
| Min. process cycle time [ms] |
3.2 |
| IO-Link process data (cyclical) |
| function |
bit length |
| process value |
16 |
| device status |
4 |
| binary switching information |
2 |
|
| IO-Link functions (acyclical) |
application specific tag; operating hours counter |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
1106 |
|
| Note |
| For further information please see the IODD PDF file under “Downloads” |
|
| Operating conditions |
| Ambient temperature [°C] |
-40…85 |
| Protection |
IP 65; IP 66; IP 67; IP 68 |
| Mechanical data |
| Weight [g] |
79.2 |
| Housing |
rectangular |
| Mounting |
flush mountable |
| Dimensions [mm] |
20 x 8 x 32 |
| Materials |
diecast zinc special coating; sensing face: PBT orange; LED window: TPU; potting: PUR |
| Drag chain suitability |
yes |
| Drag chain suitability |
| bending radius for flexible use |
min. 10 x cable diameter |
| bending cycles |
> 5 Mio. |
|
| Displays / operating elements |
| Display |
| Display operation |
1 x LED, green |
| switching status |
1 x LED, yellow |
|
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Cable: 2 m, PUR, Ø 4.9 mm; 3 x 0.34 mm² |
