| Product characteristics | |
| Electrical design | PNP |
| Output function | 2 x normally open |
| Sensing range [mm] | 7 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 26 x 26 |
| Electrical data | |
| Operating voltage [V] | 10…36 DC |
| Current consumption [mA] | < 15 |
| Protection class | II |
| Reverse polarity protection | yes |
| Outputs | |
| Electrical design | PNP |
| Output function | 2 x normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 600 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Detection zone | |
| Sensing range [mm] | 7 |
| Real sensing range Sr [mm] | 7 ± 10 % |
| Operating distance [mm] | 0…5.7 |
| Accuracy / deviations | |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
| Hysteresis [% of Sr] | 3…15 |
| Switch point drift [% of Sr] | -10…10 |
| Operating conditions | |
| Ambient temperature [°C] | -40…70 |
| Protection | IP 67 |

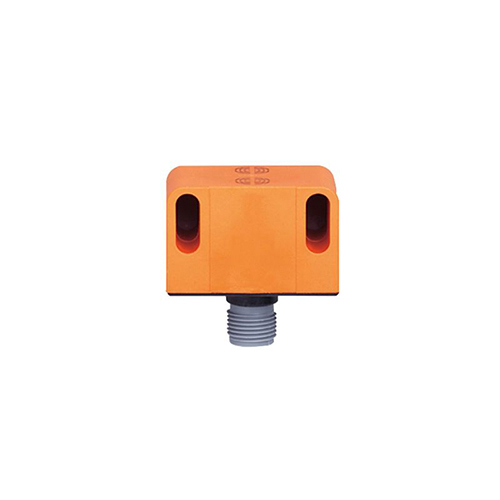

Cảm biến van IFM IN5460
Danh mục sản phẩm
-
Cảm biến van IFM IN5460
- Lượt xem: 913
- Cảm biến van IFM IN5460
