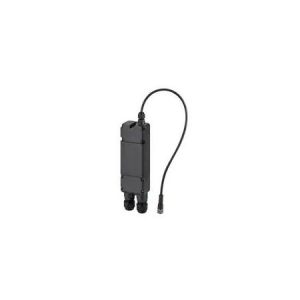

Keyence FD-GU1

Model		FD-GU1
System		Switching type
Input supply voltage		100 to 240 VAC; +10%/−15% (50/60 Hz)
Output voltage		24 VDC ±5%
Overvoltage category		ll
Ripple noise		260 mV (p-p) or lower
Output capacity		9.1 W (0.38 A) (Class 2)
Power consumption		100 VAC: 0.3 A or lower; 200 VAC: 0.2 A or lower
Pollution degree		2
Withstand voltage		3000 VAC, 1 minute (between input and output, between all external terminals and case)
Momentary interruption		20 ms or lower
Wiring specifications		AC input: power supply M4 terminal block, 2 poles; Analog output: M3 terminal block, 2 poles; DC output: M12 4-pin connector
Protection circuit		Protection against power supply surge, protection against output short-circuiting
Main unit size		63 2.48″ × 240 9.45″ × 40 1.57″ mm
Environmental resistance	Enclosure rating	IP65/67 (IEC60529)
	Ambient temperature	-20 to +50ºC -4 to 122°F (no freezing)
	Relative humidity	5 to 90%RH (no condensation)
	Vibration resistance	10 to 500 Hz power spectral density: 0.816 G2/Hz in X, Y, Z axis directions
	Shock resistance	Shock resistance 50 m/s2; 16 ms pulses, 1000 times each for X, Y, and Z axes
Material		PBT
Weight		Approx. 400 g
